Big span roll forming machine

Home >  Products >  Roof sheet roll forming machine >  Big span roll forming machine

All

Big span roof making machine/vertical and horizontal

Big span roof making machine/vertical and horizontal

Inquiry
  • Overview
  • Parameter
  • Inquiry
  • Related Products

 Specification:

1) Main machine dimension: 8.8m*2.23m*2.35m
2) Bending machine dimension; 3.8m*2.23m*2.4m
3) Suitable material: galvanized steel, colored steel, etc
4) Coil thickness: 0.8 –1.5mm
5) Roller stands:16
6) Roller diameter:80mm
7) Totally power:18.5kw
8) Main Power:7.5kw;
Hydraulic power:4.0kw;
side bending power:1.5kw*2


Curving power:4.0kw
9) Roller material: 40Cr






10) Shaft material: high grade #45 steel
11) Cutting Blade material:Cr12 steel
12) Machine speed: forming speed 13m/min Seaming
speed:6m/min
13) Span : ≤45m
14) Power supply: AC380V±10%, 50Hz, or as per your requirement









Our Services

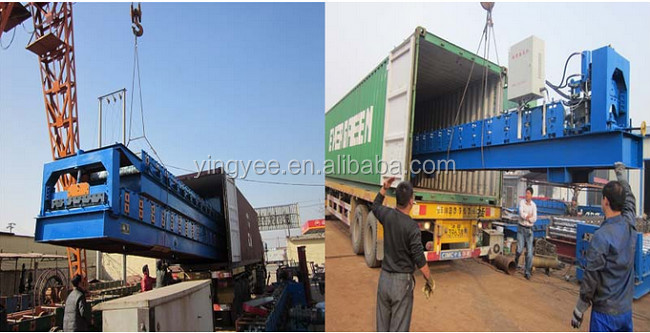

Packaging & Shipping




Company Information



Shijiazhuang Yingyee Import&Export Co., Ltd.

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor from all the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.

Our products were sold to more than 20 countries already. Also included US and Germany.

Main product :

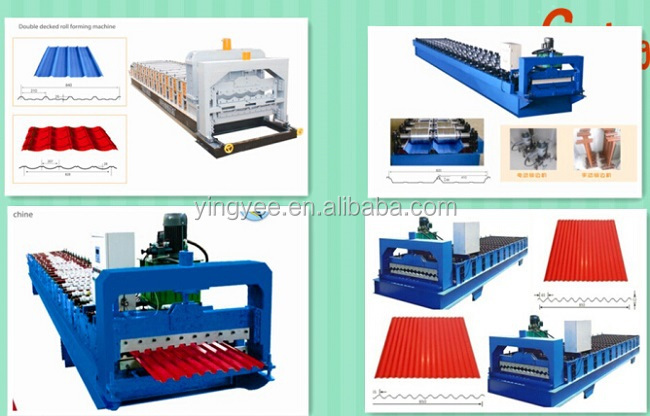

 Roof roll forming machine

 C and Z purlin roll forming machine

 Downpipe roll forming machine

 Hydraulic decoiler

 Light keel roll forming machine6

 Bending machine

 Shearing machine

 slitting machine

 Roller shutter door roll forming machine



FAQ



Training and Installation
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.



 YINGYEE


Introducing the Big span roof making machine/vertical and horizontal, the answer to all your roofing needs. Our efficient and devices that are reliable created to seamlessly build big period, both vertically and horizontally.


With YINGYEE's high-quality Big span roof making machine/vertical and horizontal, it is simple to and quickly produce roofs that are durable, long-lasting, and great looking. Our devices are manufactured to provide roof precision excellent, making sure you can get the perfect results everytime.


Among the options that are key come with this Big span roof making machine/vertical and horizontal is its versatility. It could create roofs in a wide assortment of, from tiny people to big spans. This flexibility makes it easy for you to tailor your roofing task to meet your requirements that are particular.


Another great feature of Big span roof making machine/vertical and horizontal is its simplicity of good use. We now have designed it to be simple and user-friendly to run even for novices. Featuring its easy settings and intuitive design you will quickly find out how to operate the device and commence making roofs with simplicity.


In addition to its simplicity, our Big span roof making machine/vertical and horizontal is also very efficient, enabling you to create top-quality roofs at a rapid speed. This means you will quickly complete roofing jobs and effortlessly, saving both money and time.


Our Big span roof making machine/vertical and horizontal is additionally built to final, with a sturdy construction that assures lasting durability. Making use of high-quality materials with its construction guarantees that one can depend on its performance for years to come.


The YINGYEE Big span roof making machine/vertical and horizontal is the most wonderful choice you will need to make horizontal or vertical big span roofs for you whether. Featuring its versatility, simplicity of good use, effectiveness, and durability, it is yes to exceed your expectations and deliver results that are great.


So, if you are looking for a dependable and efficient solution your roofing requires, select YINGYEE Big span roof making machine/vertical and horizontal today and experience the difference for yourself.
