storage rack roll forming machine 대한민국

Inquiry

Overview
Parameter
Inquiry
Related Products

Product brief description

Basic Parameters	Material	Thickness:2-2.5mm(according to the drawing) Input width:According to drawing Effective width：According to drawing material: GI/GL/black steel
	Power supply	380V, 50Hz, 3 phase (according to customer request)
	Capacity of power	main power: 11KW*2 hydraulic power:11KW
	Speed	Forming speed:0-20m/min
	Total weight	Approx.around 8 tons
	Dimension	Approx.(LWH) 20m1.2m1.5m
	Stands of rollers	Approx 16 rollers (according to the drawing)

Product details description

Decoiler with leveling :

Max width of raw material :According to the profile
Capacity: 5000kgs
Inner diameter of coil: 450-600mm
Hydraulic Power, leveling device.

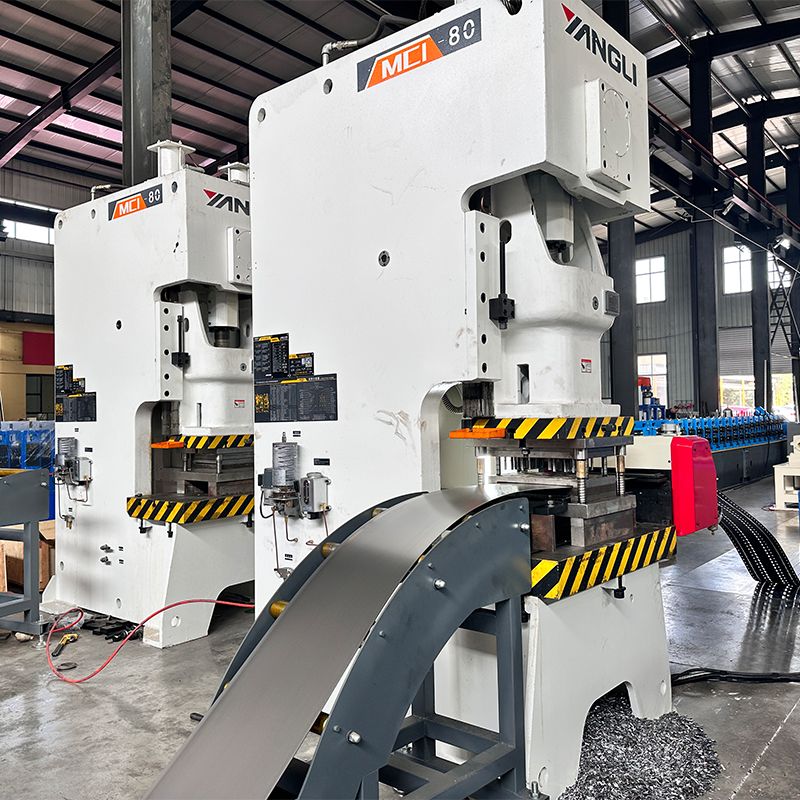

Punching machine:

Yangli 80 Ton
Punching the hole according the drawing
Servo feeder machine (main power 2.2 kw)

Feeding guide:

Feeding material with adjustable

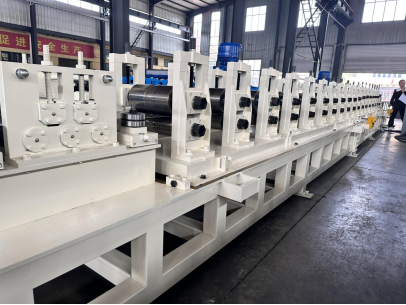

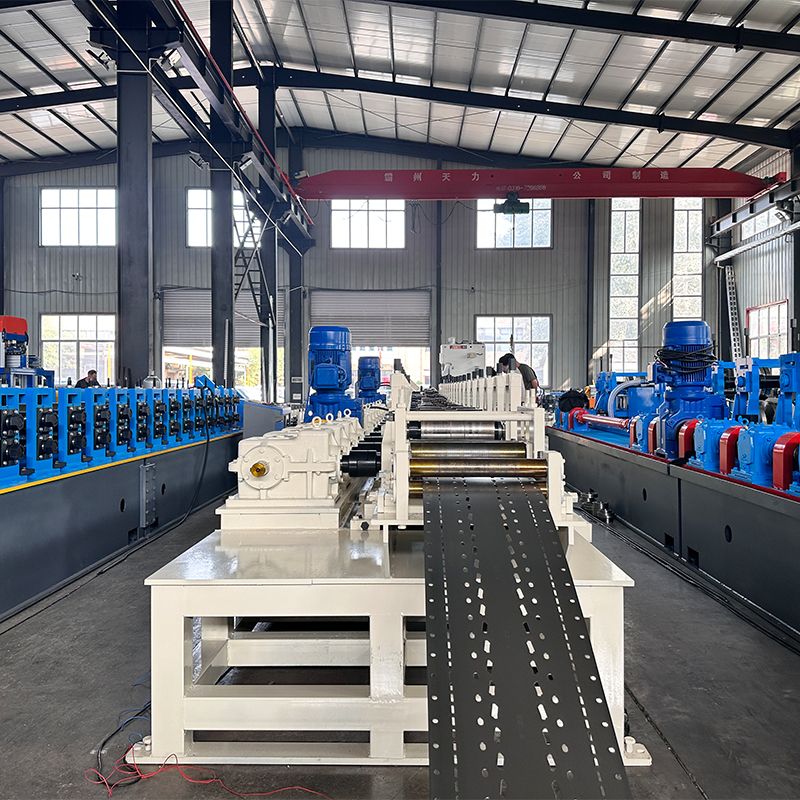

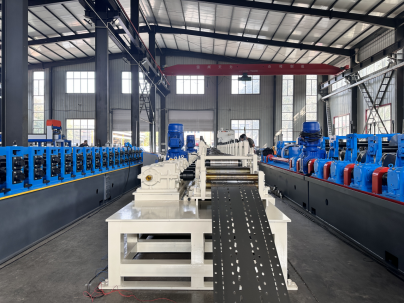

Roll forming part:

Material thickness: 2-2.5kw(according to the drawing)
Main motor power station: 11kw *2, hydraulic 11kw
Forming speed: 0-20m/min
Quantity of rollers: approx 16 rollers(according to the drawing)
Shaft Material and diameter: ￠70 mm, material is 45# steel
Tolerance: 10m+-1.5mm

Way Of Drive: gear box driven

Hydraulic cutter:

Cutting motion: Servo tracking cutting.
Material of blade: CR12 with heat treatment
Length measuring: Automatic length measuring
Hydraulic power 11 kw

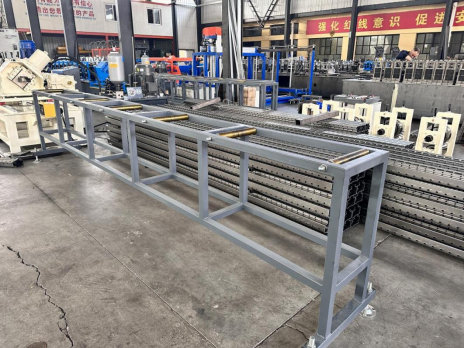

Collection table:

Receiving table with rollers

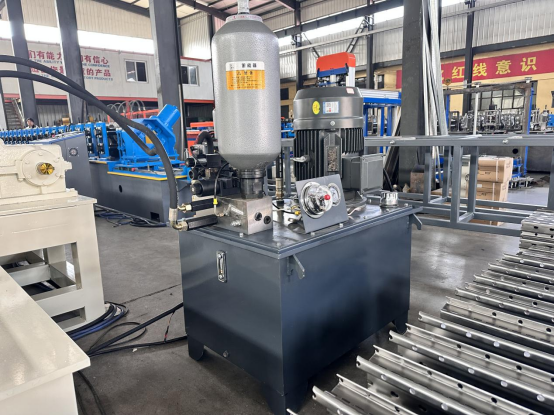

Hydraulic station :

Product parameters table

5 tonshydraulic decoiler withleveling	Max width of raw material :According to the profile Capacity:5000kgs Inner diameter of coil: 450-600mm Hydraulic Power, leveling device.
High speed Pneumatic punching machine	Yangli80Ton Punching the hole according the drawing Servo feeder machine (main power 2.2 kw)
Roll forming machine	Material thickness: 2-2.5kw(according to the drawing) Main motor power station:11kw *2, hydraulic11kw Forming speed: 0-20m/min Quantity of rollers: approx16 rollers(according to the drawing) Shaft Material and diameter:￠70 mm, material is 45# steel Tolerance: 10m+-1.5mm Way Of Drive: gear box driven
Cutting	Cutting motion:Servo tracking cutting. Material of blade: CR12 with heat treatment Length measuring: Automatic length measuring Hydraulic power11 kw
PLC control system	Automatic length measurement: Automatic quantity measurement Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily Control panel: Button-type switch and touch screen Unit of length: millimeter (switched on the control panel)
